Product Overview

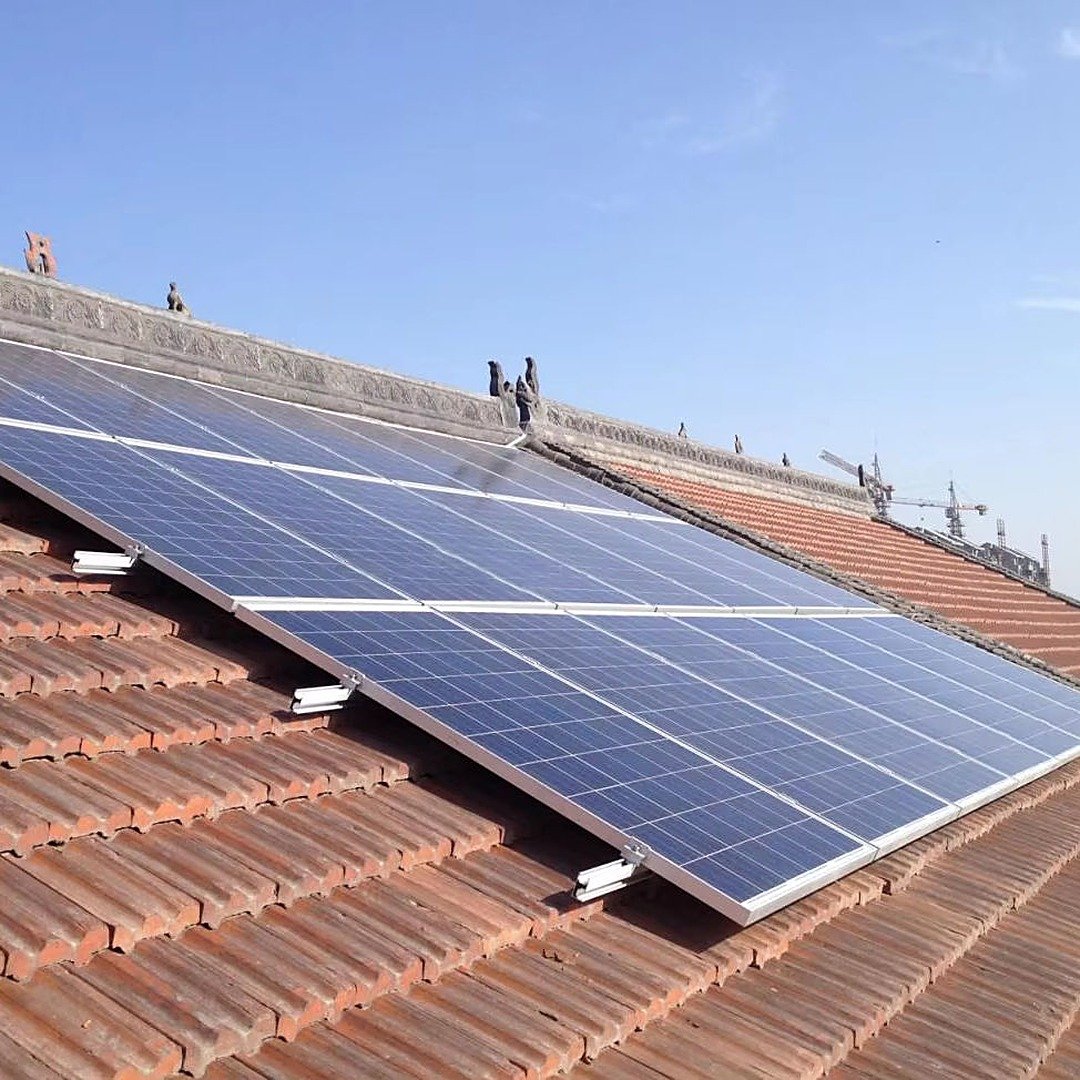

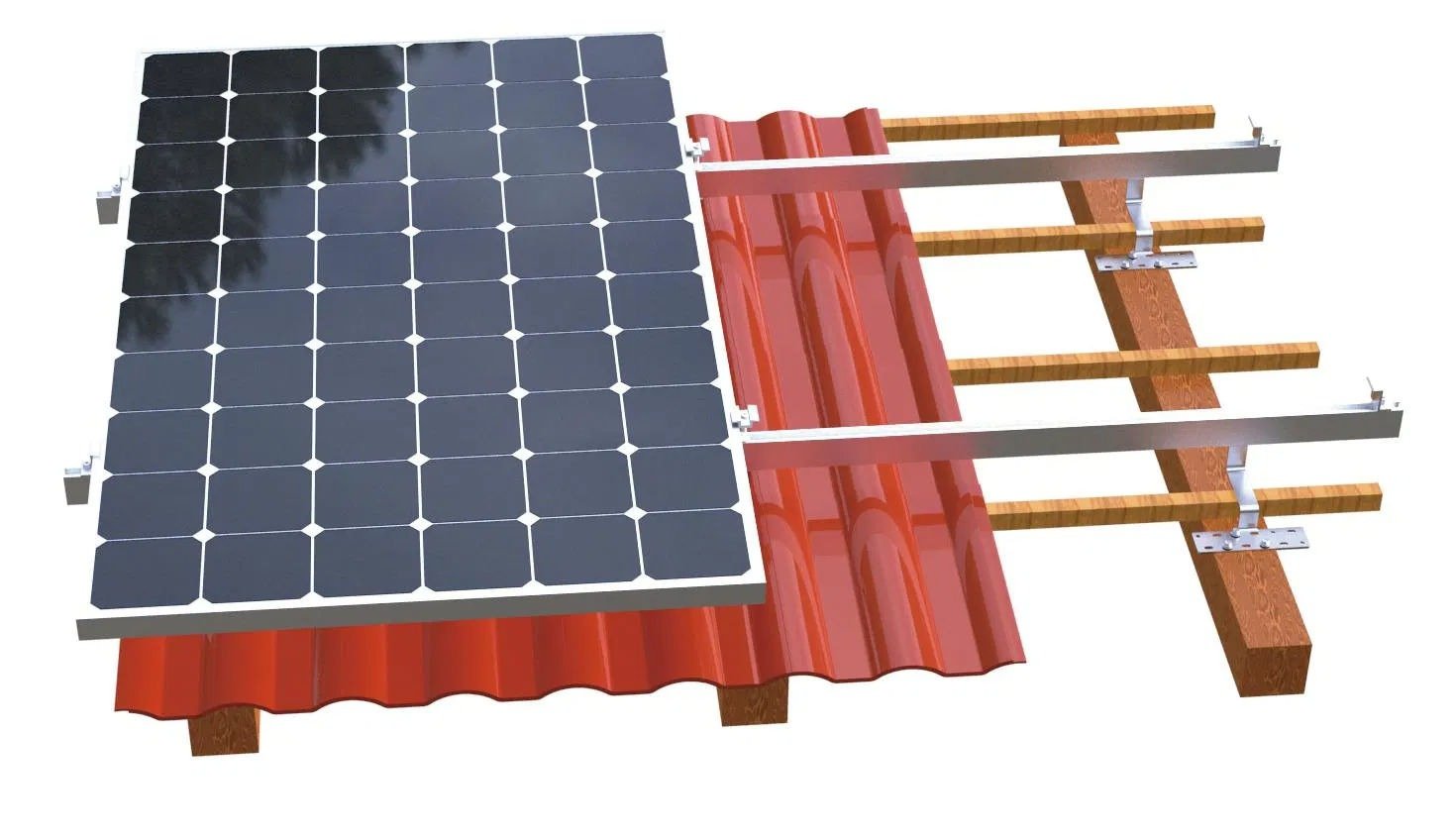

The tile roof solar mounting system uses SUS304 tile hooks that slide under the tile and bolt to the rafter, keeping the waterproof membrane intact. Combined with AL6005-T5 rails it delivers a clean, low-profile array that follows the roof line.
Hooks are height- and angle-adjustable to compensate for uneven tiles and rafter positions. The system suits residential and small commercial tiled roofs and ships as a complete kit per kW — hooks, rails, clamps, grounding lugs and fasteners.
Key Features
- SUS304 adjustable hooks — height and angle compensation on uneven tiles
- No waterproof damage — hook slides under tile, membrane untouched
- Low-profile roof-line design — 10-15 cm gap, flush aesthetics
- Complete per-kW kits — hooks, rails, clamps and lugs in one pack
- Fits all common tiles — flat, curved, Roman and slate profiles
- 25-year service life — anodized aluminum + stainless steel
Application Scenarios
Designed for these tile-roof scenarios:
- Residential homes — flush-mounted residential arrays
- Villas and heritage buildings — roof-line preserving installation
- Small commercial tiled roofs — shops, clinics, schools
- Coastal homes — SUS316 hook option for salt air
Configuration Options
- Hook type — flat hook, curved hook, slate hook (SUS304/316)
- Hook adjustment — height ±20 mm, angle up to 15°
- Rail — 40×40 mm AL6005-T5, pre-cut lengths
- Tilt — parallel to roof (flush) or raised 10°-15°
- Layout — portrait/landscape, 1-3 rows
Product Specifications
| Hook material | SUS304 (SUS316 optional) |
| Rail material | AL6005-T5 anodized |
| Fasteners | SUS304 |
| Module clearance | 100-150 mm above tile |
| Wind load | ≤ 54 m/s per project |
| Snow load | ≤ 1.2 kN/m² |
| Warranty | 10 years structural |
All products are manufactured in our ISO 9001 certified factory and carry CE / SGS certification. Custom requirements are welcome.
Quality Certifications
Ruhai Material is ISO 9001 certified and ships products compliant with CE and SGS requirements worldwide. Material certificates and test reports are available with each shipment.
Frequently Asked Questions
What is the MOQ for the tile roof solar mounting system?
MOQ is 30 kits (approx. 15 kW); sample kits available from 3 sets.
Will the hooks crack my tiles?
No — hooks sit under the tile edge; only minor tile lifting is needed during install.
How do I know which hook fits my tile?
Send a photo of your tile profile — we match flat, curved or slate hooks.
Lead time?
7-12 days after order confirmation.
