Product Overview
The adjustable solar roof mounting bracket is a triangle support with quick-change holes for 10°, 15°, 20°, 25°, 30° and 40° positions. Crews re-pitch the array seasonally in minutes to squeeze extra winter yield from the same panels.
Triangle beams are extruded AL6005-T5 with SS304 pivot hardware, delivering rigid support at low weight. The bracket is popular for flat commercial roofs and ground applications where seasonal optimization pays back quickly.
Key Features
- 6 tilt positions 10°-40° — seasonal angle tuning in minutes

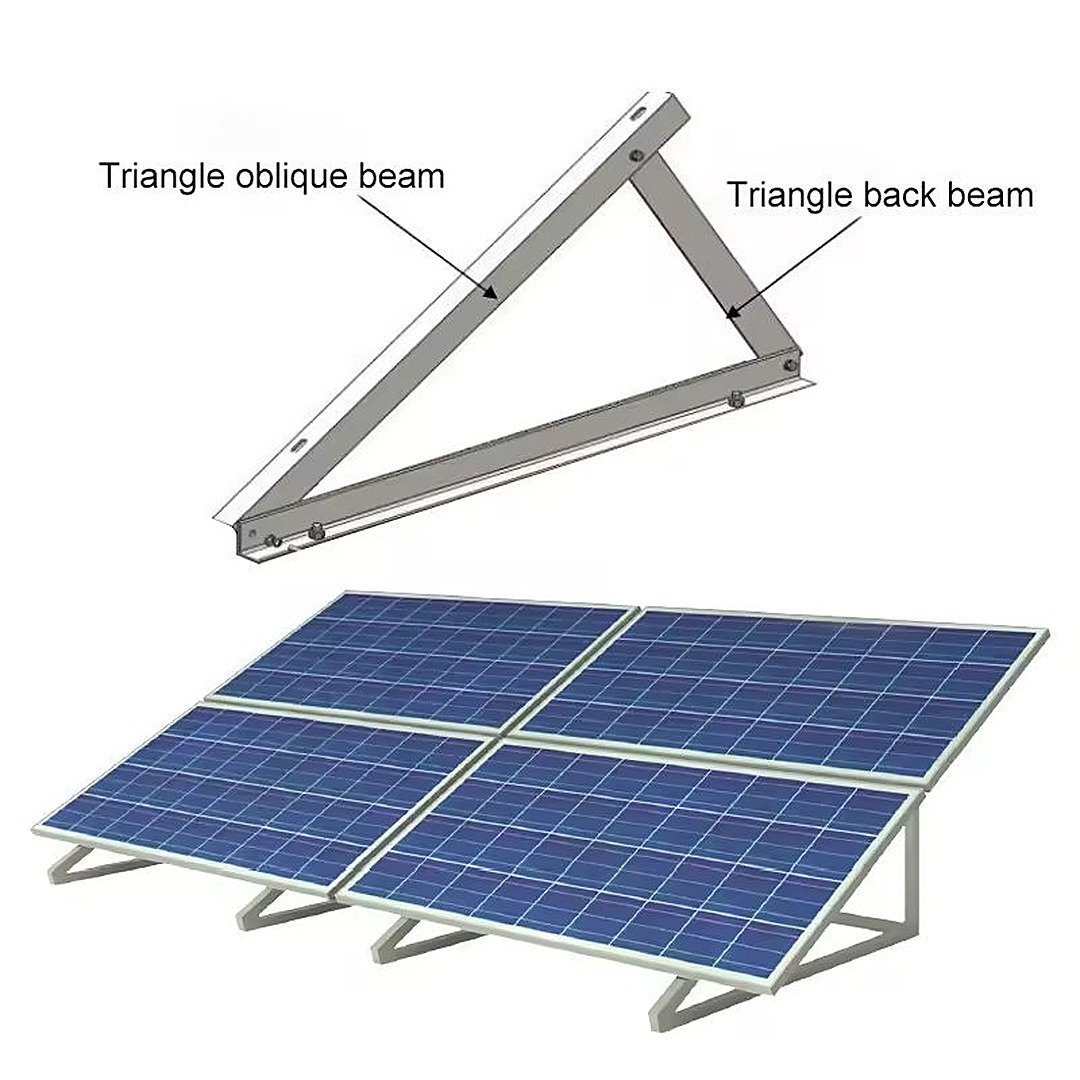

- Triangle rigidity — oblique + back beam triangulated support
- Lightweight AL6005-T5 — easy rooftop handling
- Shared-rail rows — one bracket row serves two panel rows
- Ground or roof use — same kit works on ballasted roofs
- SS304 pivot hardware — no galling, smooth re-adjustment
Application Scenarios
Where adjustable brackets earn their keep:

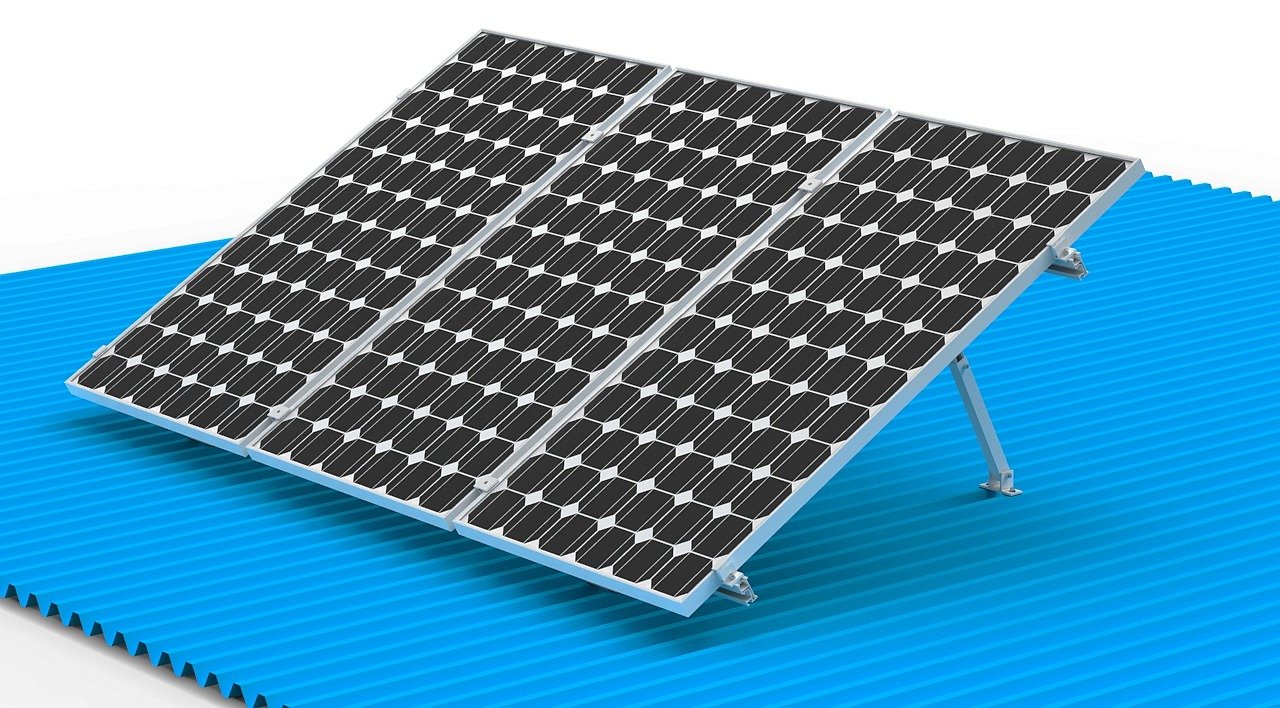

- High-latitude sites — steep winter angles raise output 10-15%
- Seasonal occupancy — camps, resorts and holiday facilities
- Flat commercial roofs — combined with ballast trays
- Off-grid winter loads — compensate low winter sun
Configuration Options
- Tilt positions — 10° / 15° / 20° / 25° / 30° / 40°
- Panel rows — 1, 2 or 3 rows per triangle
- Material — AL6005-T5 anodized
- Base fixing — ballast tray, L-feet or ground screws
- Module size — all framed 30-35 mm modules
Product Specifications
| Material | AL6005-T5 anodized aluminum |
| Hardware | SUS304 stainless |
| Tilt range | 10°-40° in 6 positions |
| Wind load | ≤ 54 m/s |
| Snow load | ≤ 1.2 kN/m² |
| Adjustment | manual, 2 bolts per change |
| Warranty | 10 years |
All products are manufactured in our ISO 9001 certified factory and carry CE / SGS certification. Custom requirements are welcome.
Quality Certifications
Ruhai Material is ISO 9001 certified and ships products compliant with CE and SGS requirements worldwide. Material certificates and test reports are available with each shipment.
Frequently Asked Questions
What is the MOQ for the adjustable solar roof mounting bracket?
MOQ is 100 brackets; samples from 10 pcs.
How long does a tilt adjustment take?
About 2 minutes per bracket row once trained.
Can it be used on the ground?
Yes — same bracket on ground screws or concrete feet.
Lead time?
7-12 days standard.
