Product Overview

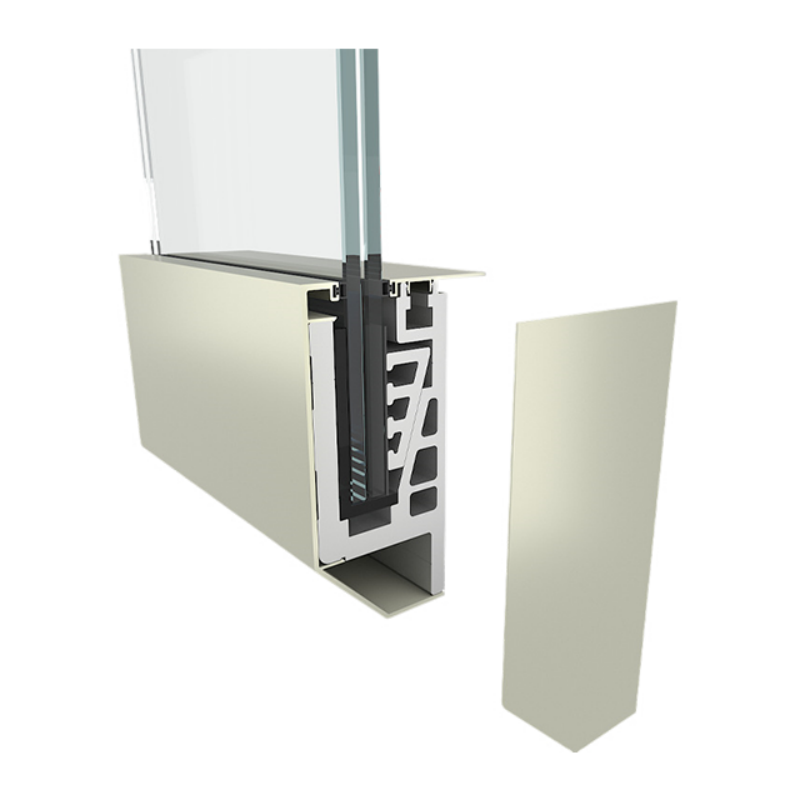

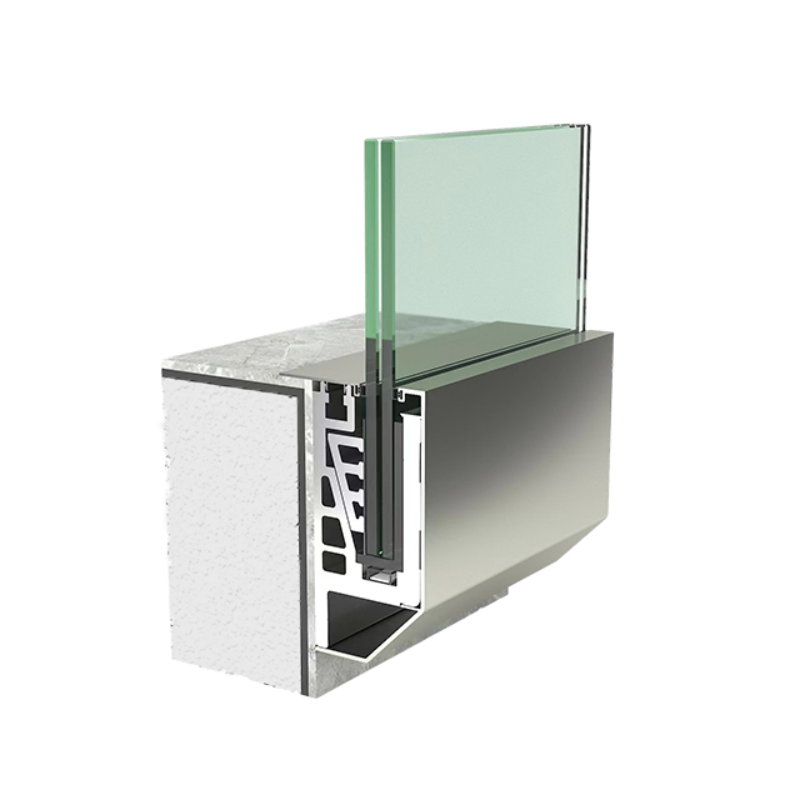

Glass railing for deck applications uses Ruhai’s surface-mounted base channel to build a continuous laminated glass windbreak along deck and terrace edges.
Compared with slatted wind screens, glass blocks wind completely without blocking light or view — the deck stays usable even on windy days. Marine-grade anodizing is available for waterfront projects.
Key Features
- Real wind stop — solid glass panel blocks gusts completely
- Surface mount — bolt-down channel for wood or concrete decks
- Marine-grade option — extra anodizing thickness for coastal sites
- Height options — 1000-1400 mm wind walls
- Clean edges — top rail optional; glass edge polish exposed
Application Scenarios
Deck and terrace glass railings serve wind-exposed outdoor spaces:
- Rooftop bars & decks — wind-sheltered seating with views
- Garden terraces — year-round usable outdoor rooms
- Marinas & waterfront — salt-resistant railing systems
- Restaurant patios — transparent weather protection
Configuration Options
- Mounting — surface-mounted 6063-T6 aluminum channel
- Glass — 12-17 mm clear or low-iron laminated
- Height — 1000-1400 mm
- Finish — anodized silver / black; marine grade optional
- Fixings — A2/A4 stainless anchor bolts
- Extras — top rail, LED strip channel option
Product Specifications
| Alloy | 6063-T6 |
| Glass | 12-17 mm laminated |
| Height | 1000-1400 mm |
| Wind load | designed per project site |
| Fixings | A4 stainless steel |
| Certificates | CE / ISO 9001 |
All products are manufactured in our ISO 9001 certified factory and carry CE / SGS certification. Custom requirements are welcome.
Quality Certifications
Ruhai Material is ISO 9001 certified and ships products compliant with CE and SGS requirements worldwide. Material certificates and test reports are available with each shipment.
Frequently Asked Questions
Can the channel fix to a wooden deck frame?
Yes, with through-bolts to the joists; we supply the fixing plan.
What is the MOQ?
MOQ is 100 m of channel; glass can be sourced locally with our spec sheet.
Is it suitable for seaside?
Yes — choose the marine-grade anodizing and A4 stainless fixings for salt exposure.
What is the lead time?
10-20 working days depending on finish.
Can LED lighting be integrated?
Yes, we offer a channel variant with an LED strip slot.
