Product Overview

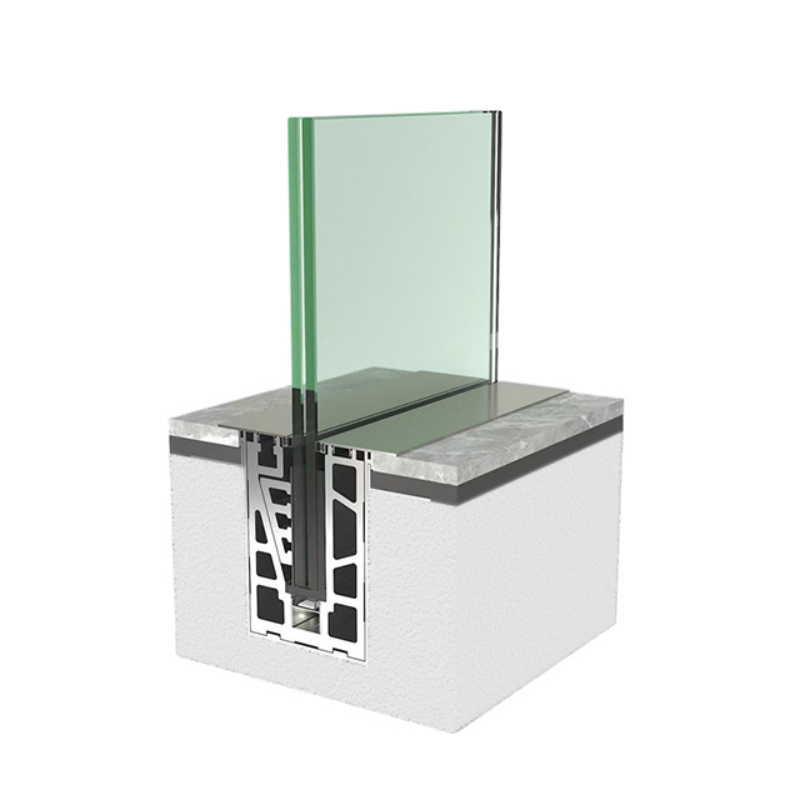

Frameless glass railing with Ruhai’s embedded base channel is fixed inside the slab edge before waterproofing and tiling — the channel disappears into the floor and only glass remains visible.
The profile includes drainage slots and works with standard waterproofing membranes. It is the architect’s choice for terraces and pool edges where no visible metal is acceptable.
Key Features
- Invisible fixing — channel buried in slab edge / floor buildup
- Waterproofing friendly — flange accepts membrane layers; drainage slots included
- Heavy glass ready — sizes for 12-21.5 mm laminated panels
- Long runs without posts — glass-to-glass joints with joint strips
- Complete templates — setting templates and wedge packs speed up install
Application Scenarios
Embedded frameless railing is chosen where the floor line must stay clean:

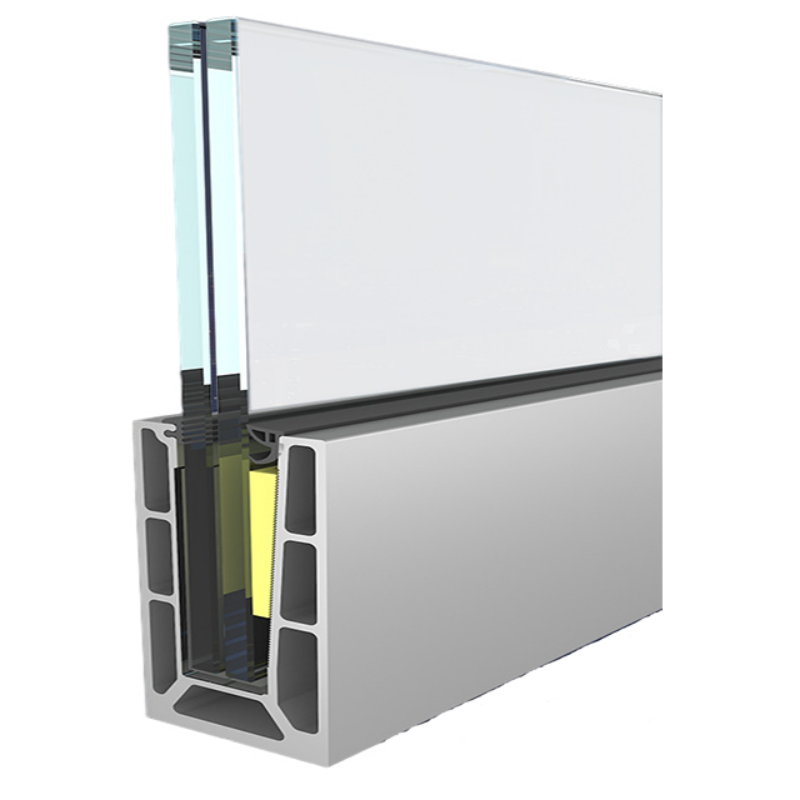

- Rooftop terraces — glass rises straight from the tiled surface
- Pool surroundings — chlorine-safe anodized aluminum
- Penthouse balconies — premium uninterrupted views
- Landscape steps & decks — flush glass edges in gardens
Configuration Options
- Channel type — embedded (cast-in) 6063-T6 aluminum
- Glass — 12-21.5 mm laminated tempered
- Waterproofing — compatible with PVC / bitumen membranes
- Drainage — slots along channel base
- Finish — anodized silver / black

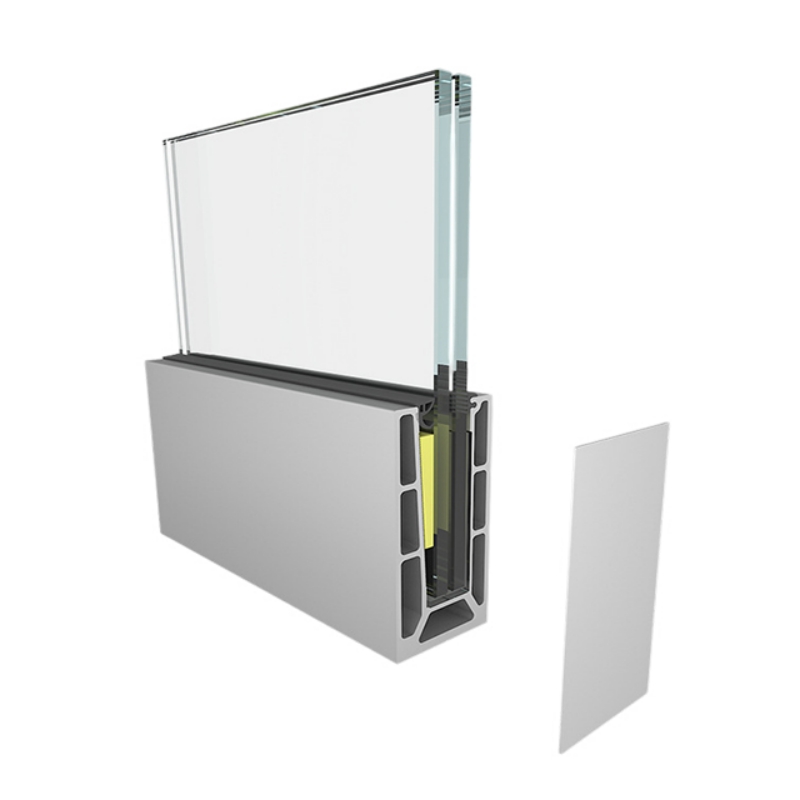

- Accessories — leveling shims, wedges, joint strips, end caps
Product Specifications
| Alloy | 6063-T6 |
| Embedment | 110-200 mm |
| Glass | 12-21.5 mm laminated |
| Load | 0.5-1.0 kN/m |
| Finish | anodized 10-15 um |
| Certificates | CE / ISO 9001 / SGS |
All products are manufactured in our ISO 9001 certified factory and carry CE / SGS certification. Custom requirements are welcome.
Quality Certifications
Ruhai Material is ISO 9001 certified and ships products compliant with CE and SGS requirements worldwide. Material certificates and test reports are available with each shipment.
Frequently Asked Questions
When must the channel be ordered?
Order before slab formwork — the channel is positioned and cast in during construction.
What about waterproofing?
The channel flange is designed to tie into the waterproofing membrane; we provide the standard detail drawing.
What is the MOQ?
MOQ is 100 m; large projects get mill-direct pricing.
Can glass be replaced later?
Yes, wedges are removable — a broken panel can be swapped without touching the channel.
What is the lead time?
10-20 working days after drawings approval.
