Product Overview

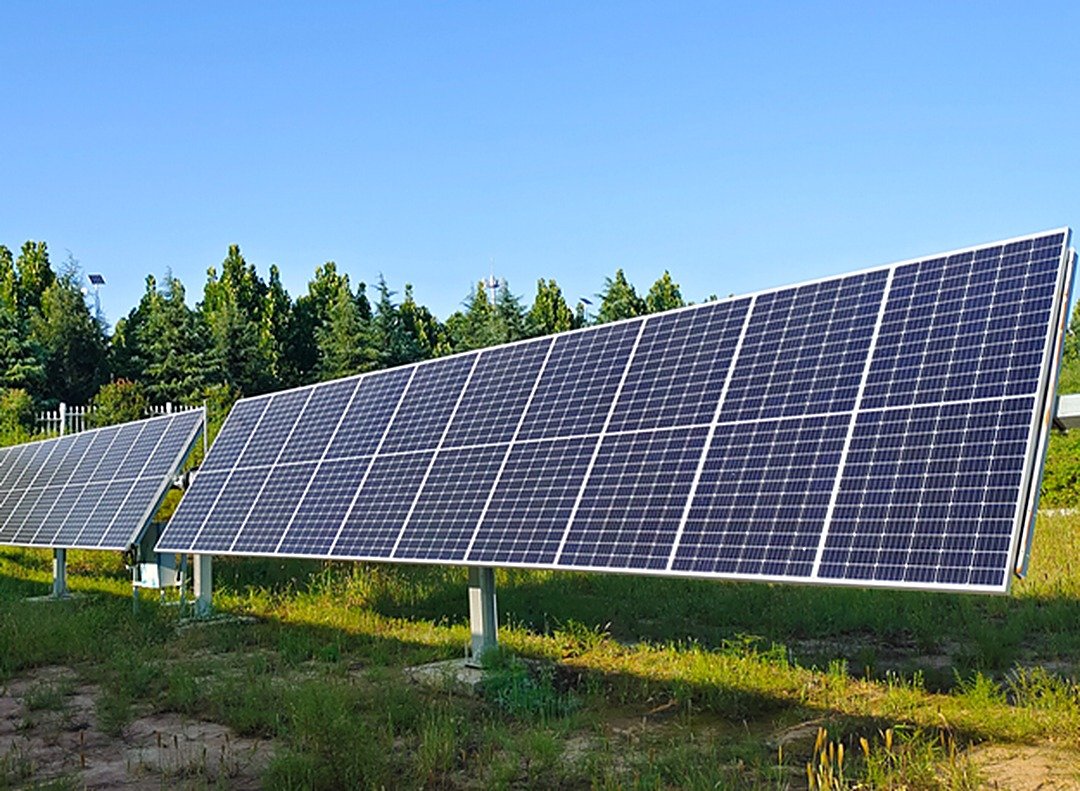

The utility scale solar ground mount system is built around C-channel steel purlins on driven H-section or pipe piles, the most cost-efficient solution for large PV plants above 1 MW. Pile driving reaches 300-500 piles per day with standard machinery.
All steel components are hot-dip galvanized to 80 μm and designed per AS/NZS 1170 or Eurocode wind zones. We supply complete BIM layout, pile pulling test guidance and batch material certificates for utility EPC contractors.
Key Features
- C-channel steel purlins — high span capacity, fewer piles per MW
- Driven pile foundation — 300-500 piles/day installation speed
- HDG 80 μm coating — 20+ year corrosion protection in C4 environments
- Engineering to code — AS/NZS 1170, Eurocode or GB standards
- MW-scale logistics — nested packing reduces container count by 15%
- EPC documentation — layout drawings, pile tests and MTC included
Application Scenarios
Choose this system when you are tendering or building utility-scale capacity:

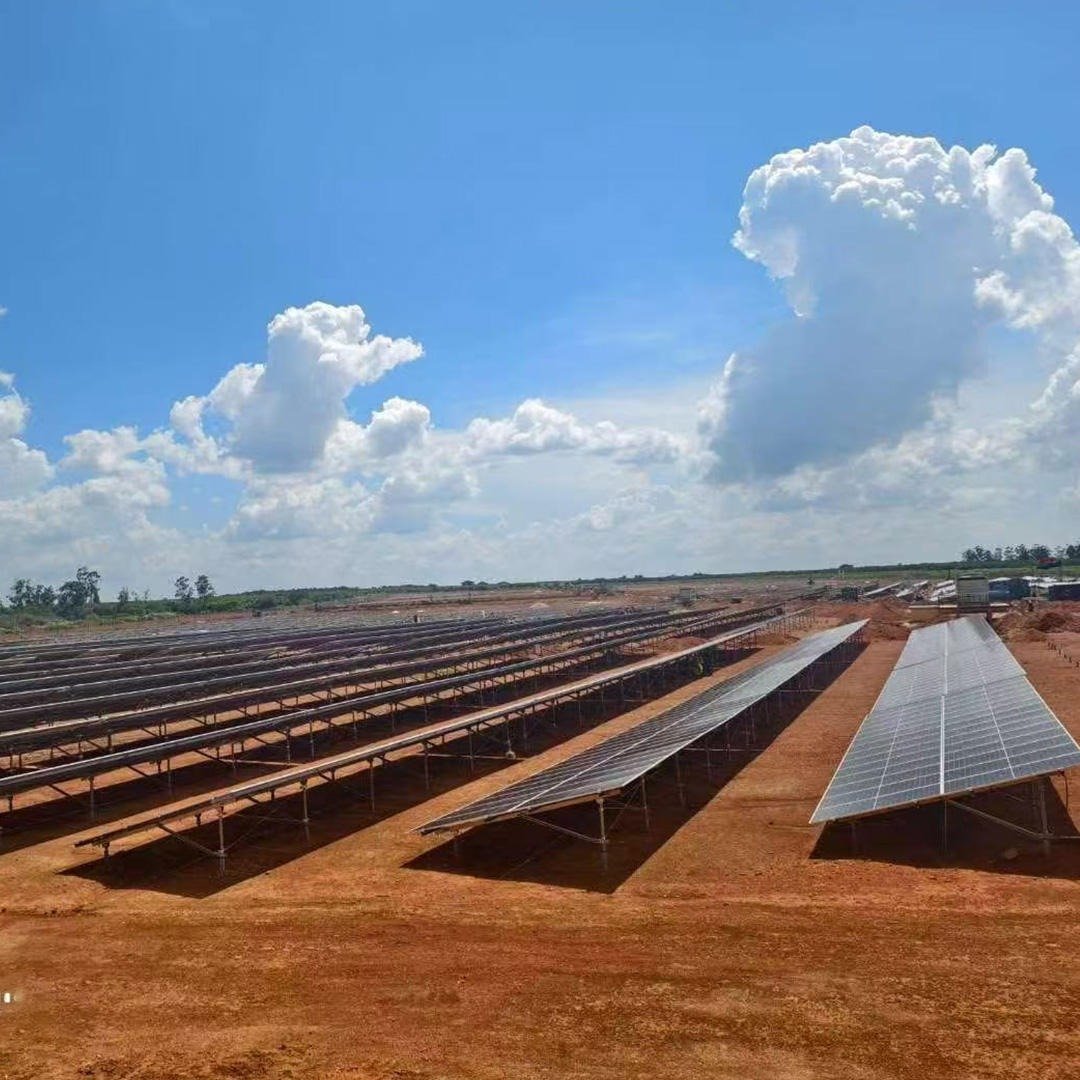

- Utility solar parks — 1-100 MW single-site deployments
- Desert and gobi projects — wind-engineered piles with rock anchors
- Government tenders — full compliance documentation package
- EPC ODM supply — white-label structure kits at factory pricing
Configuration Options
- Pile type — H-beam, pipe pile or C-pile, driven or screw
- Purlin — C80×40×20×2.5 steel, HDG 80 μm
- Tilt angle — 15° / 20° / 25° / 30° (fixed)
- Module orientation — 2P landscape standard, 4P optional
- Design code — AS/NZS 1170, Eurocode 3, GB 50009
Product Specifications
| Main material | Q235B / Q355B hot-dip galvanized steel |
| Coating | HDG 80 μm (C4 corrosion class) |
| Pile embedment | 1.5-2.5 m per soil report |
| Wind load | engineered per site, up to 60 m/s |
| Snow load | up to 1.5 kN/m² |
| Module compatibility | all framed 500W-700W modules |
| Warranty | 10 years structural, 25-year design life |
All products are manufactured in our ISO 9001 certified factory and carry CE / SGS certification. Custom requirements are welcome.
Quality Certifications
Ruhai Material is ISO 9001 certified and ships products compliant with CE and SGS requirements worldwide. Material certificates and test reports are available with each shipment.
Frequently Asked Questions
What is the MOQ for a utility scale solar ground mount system?
MOQ is 1 MW per order. Pilot lots of 50-100 kW are available for tender sampling.
Do you provide pile pulling test support?
Yes — we guide the vertical, lateral and horizontal pull tests and adjust pile length to your soil report.
Can you match our EPC drawing package?
Yes, we work from your GA and layout drawings or produce them for you.
Lead time for 10 MW?
25-35 days after drawings are approved; phased deliveries can be arranged.
Request a Quote
Send us your specifications, quantity and target port — our sales team replies within 24 hours with a detailed quotation. Send an inquiry now.
