Product Overview

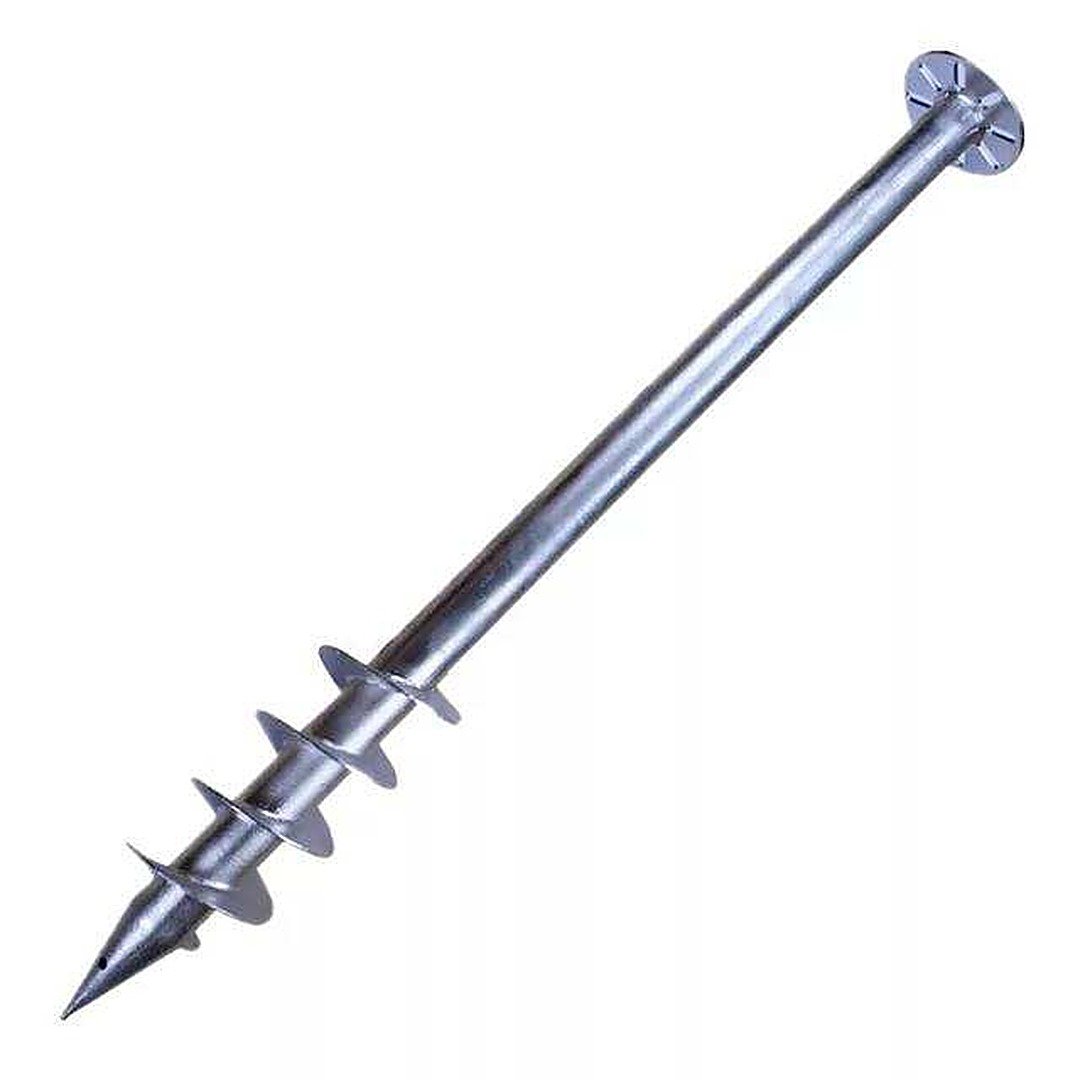

The ground screw anchor is a steel pile with a welded helix that screws into the soil to become an instant foundation. Hot-dip galvanized Q235B shafts of Ø76 mm reach 1000-3000 mm deep and carry flanges or nuts on top for any connection detail.
Installation takes 2-4 minutes per screw with a rotary drive head — no concrete, no curing, no spoil. Load capacity is verified on site with pull tests; typical pull-out in medium soil exceeds 25 kN.
Key Features
- Ø76 mm Q235B shaft — HDG ≥ 80 μm, C4 corrosion class
- 1000-3000 mm lengths — below frost line in most climates
- 200/220 mm flange options — direct bolt-on connections
- 2-4 min install — rotary drive, no concrete
- 25 kN pull-out typical — verified with site pull tests
- Reusable — unscrew and relocate
Application Scenarios
Foundations solved by this anchor:
- Solar ground mounts — instant pile foundation for rails
- Fencing and barriers — rapid post foundations
- Signage and lighting — no-dig urban installation
- Temporary structures — removable, soil-safe footings
Configuration Options
- Diameter — Ø68 / Ø76 / Ø89 mm
- Length — 1000 / 1200 / 1600 / 2000 / 3000 mm
- Top connection — flange, double flange, nut or U-bracket
- Helix — single or multi-helix per soil
- Coating — HDG 80 μm standard

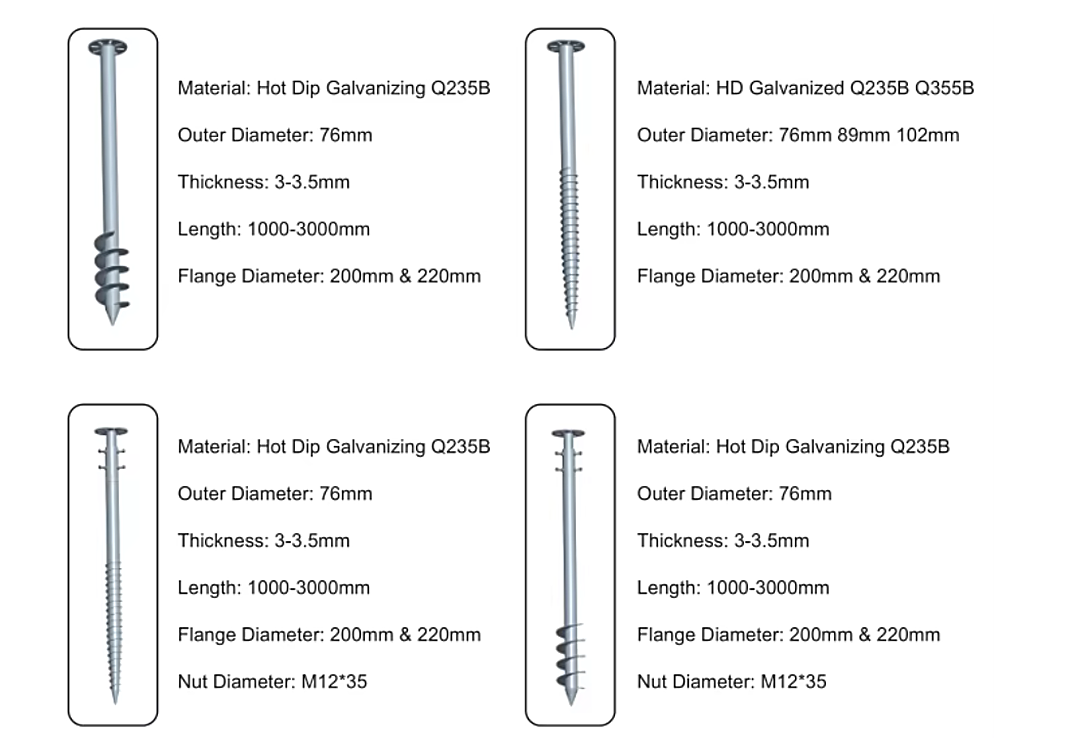

Product Specifications
| Material | Q235B hot-dip galvanized ≥ 80 μm |
| Shaft diameter | 76 mm standard |
| Length | 1000-3000 mm |
| Flange | Ø200 / Ø220 mm |
| Wall thickness | 3-3.5 mm |
| Pull-out capacity | ≥ 25 kN typical medium soil |
| Warranty | 10 years |
All products are manufactured in our ISO 9001 certified factory and carry CE / SGS certification. Custom requirements are welcome.
Quality Certifications
Ruhai Material is ISO 9001 certified and ships products compliant with CE and SGS requirements worldwide. Material certificates and test reports are available with each shipment.
Frequently Asked Questions
What is the MOQ for the ground screw anchor?
MOQ is 100 pcs; sample bundles of 10 pcs are available.
Which length should I choose?
Rule of thumb: frost depth + 500 mm; confirm with our soil-report review.
Can you match our machine drive head?
Yes — universal 75-90 mm collars fit most rotary drives.
Lead time?
7-12 days for stock lengths.
Request a Quote
Send us your specifications, quantity and target port — our sales team replies within 24 hours with a detailed quotation. Send an inquiry now.
