Product Overview
Aluminum bifold glass door (folding door) stacks panels to one side and opens the entire wall — the indoor-outdoor connection for patios, restaurants and modern living rooms.
Panels run on a top-hung stainless track with nylon rollers; a single mid-panel handle opens all leaves in one motion. Slim sightlines with 2.0 mm reinforced aluminum keep the glass wall elegant.
Key Features
- Full-wall opening — up to 90% clear opening width
- One-motion operation — mid-panel handle folds all leaves
- Slim sightlines — reinforced profiles keep frames narrow
- Smooth & quiet — stainless track with nylon roller bearings
- Configurable folds — 3-8 panels, inward or outward opening
Application Scenarios
Bifold doors connect interiors with outdoor and commercial spaces:
- Home patios & gardens — living room opens to the yard
- Cafes & restaurants — full street fronts open in summer
- Pool houses & sunrooms — wide access with glass walls
- Balcony enclosures — flexible all-glass facade

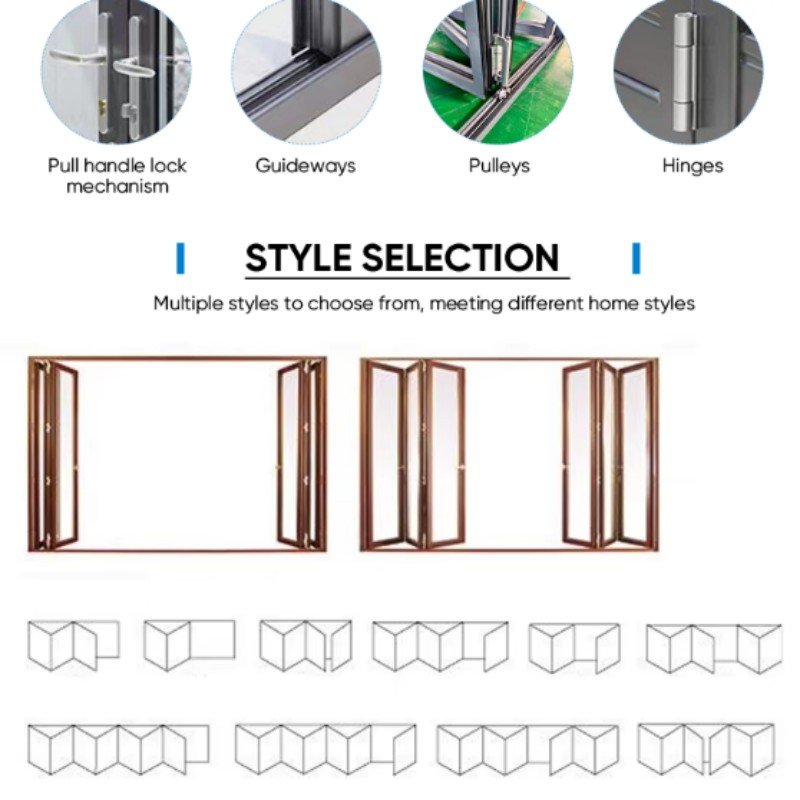

Configuration Options
- Panels — 3-8 leaves per door set
- Profile — 2.0 mm aluminum, thermal break optional
- Glass — double tempered 5+12A+5 or single 10 mm
- Track — top-hung stainless; low-threshold sill option
- Colors — black / grey / white / RAL
- Max set width — about 7.2 m
Product Specifications
| Profile wall | 2.0 mm |
| Panel width | 600-1000 mm |
| Glazing | double tempered |
| Track load | up to 120 kg/panel |
| Opening | up to 90% |
| Certificates | CE / ISO 9001 |
All products are manufactured in our ISO 9001 certified factory and carry CE / SGS certification. Custom requirements are welcome.
Quality Certifications
Ruhai Material is ISO 9001 certified and ships products compliant with CE and SGS requirements worldwide. Material certificates and test reports are available with each shipment.
Frequently Asked Questions
What is the MOQ?
MOQ is 5 m2 or one door set.
Inward or outward opening?
Both are possible; outward is common for patios to save interior space.
What about the floor threshold?
A low-threshold sill is available for barrier-free access.
What is the lead time?
25-35 working days after drawings.
Can panels be locked partially open?
Yes, traffic locks hold the lead panel at any position.
Request a Quote
Send us your specifications, quantity and target port — our sales team replies within 24 hours with a detailed quotation. Send an inquiry now.
